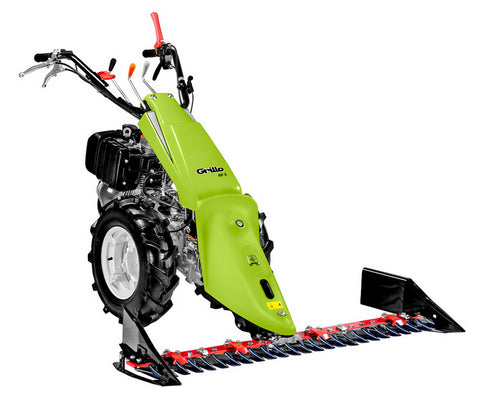

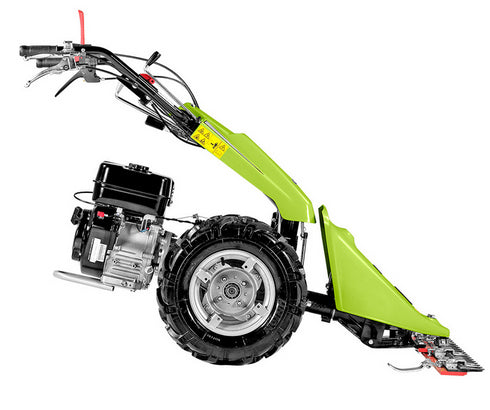

Grillo GF 3DF Sickle Bar

The Grillo GF3 is a perfectly balanced sickle bar; the engine and the PTO are positioned in such way to obtain the ideal ground clearance for the professional mowing even on slopes.

The centre of gravity was designed to make the GF3 DF manoeuvrable and safe also under the most demanding working conditions. The diff-lock and the independent braking on each wheel ensures complete and easy manoeuvrability.

The 3 gears are all utilisable whilst mowing. The Grillo GF3 DF is equipped with an active cone clutch, a device considerably increasing the operator’s safety.

The crank mechanism was built using only top quality steel types and is equipped with greaser nipples in all articulating parts.

The blade sections are made of special steel and fixed with 6 mm rivets. The cutter bar’s teeth have a special profile to give a perfect cut and are made from heat treated steel.

The blade tensioners are adjustable ensuring constant adherence between blade and teeth. The central cutter bar “Tirol” 115 cm is also available with an oil bath action and adjustable cutting head. The oil bath action reduces maintenance and makes the cutter bar ideal for more intensive and demanding work.

The gearbox has 3 forward and 3 reverse gears and has been designed by Grillo to achieve the optimum mowing speed, 1.1, 2.6 and 4.3 km/h when fitted with the “Tractor” wheels 4.00-8.

In order to produce an even cut, the cutter bar is freely inclinable to allow for any ground undulations. The handlebar is mounted on anti-vibrating rubbers which dampen the vibrations also laterally. The handlebar is laterally adjustable for use on slopes and height adjustable to meet all user requirements. It is also reversible and can be lowered to considerably reduce the machine’s size.

All controls are in a comfortable position including the handlebar adjusting levers.
The GF3 DF is supplied with a Honda GX270 270cc engine and has a 132cm Professional double cutting bar with oil bath movement and self regulating elastic hold down clamps (Busatis Austria System).

Engine	Honda GX270
Capacity	270cc
Power	6.3Kw
Fuel Capacity	5.5 Litres
Gears	3 Forward & 3 Reverse
Item Weight	116.kg
Starting Method	Recoil
Working Width	132cm
Warranty	2 Years Domestic
